Launching eLxr for AWS x86 from the AWS Marketplace

Note

Currently, only eLxr 12.13 is available on the AWS Marketplace.

About This Task

The Amazon Web Services (AWS) Marketplace offers the eLxr for AWS x86 image for use in AWS free of charge. Use this procedure to:

  • Access the AWS Marketplace on the web or through the dashboard

  • Locate and subscribe to the eLxr product

  • Launch eLxr in an EC2 instance (virtual cloud server) and connect to it.

Before You Begin

You must have an AWS Marketplace account and be logged in to it.

Procedure

  1. Locate the eLxr for AWS x86 image.

    Option 1: Web

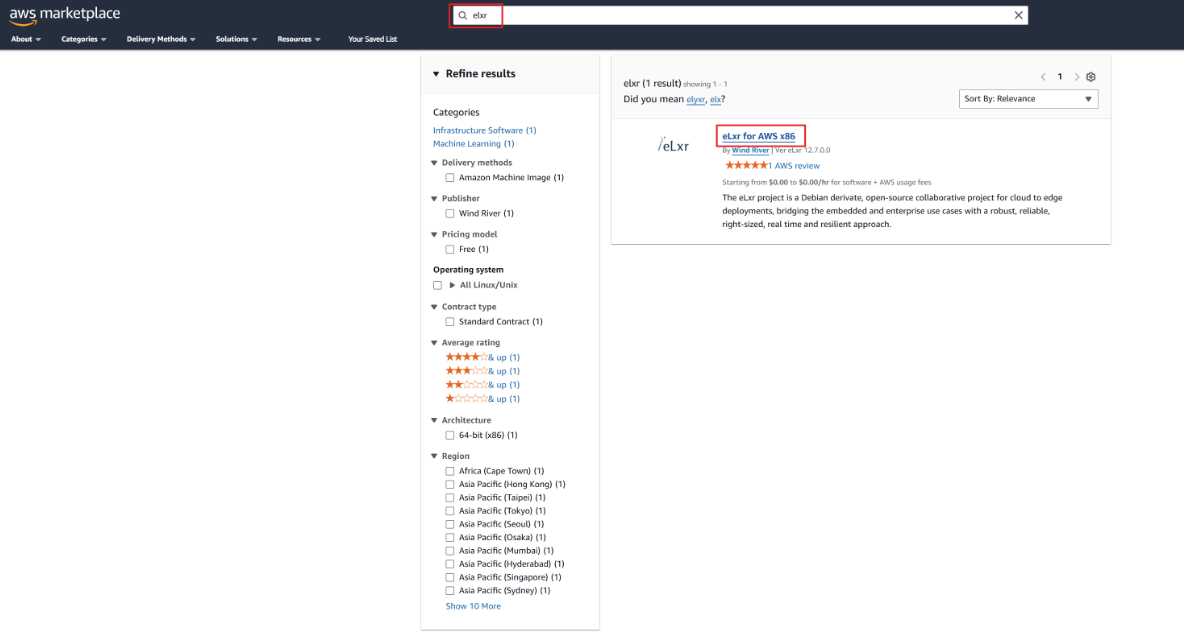

    Search for elxr at the top of the page.

    ../../_images/aws-locate-elxr-web.png

    In the results, click eLxr for AWS x86.

    Option 2: Console Home (Dashboard)

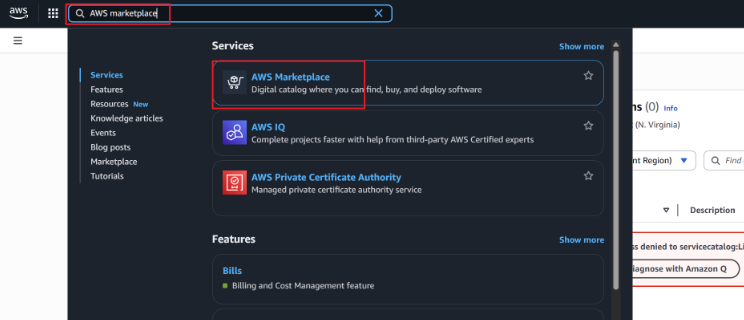

    From the Dasboard, search for AWS Marketplace, then click the result in Services.

    ../../_images/aws-locate-aws-marketplace.png

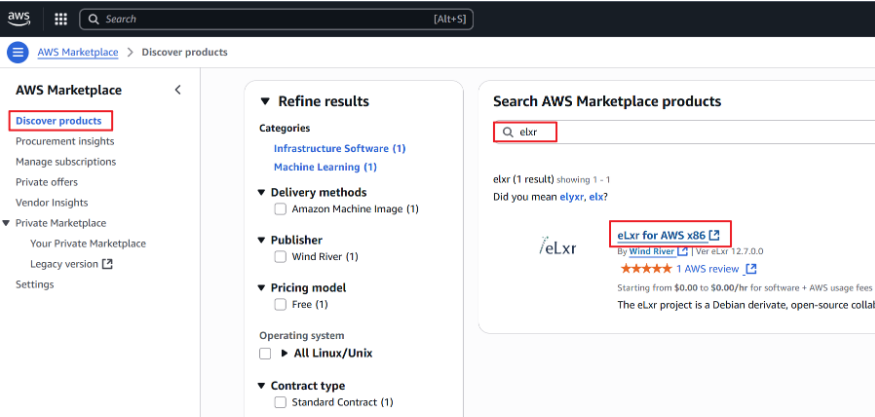

    In the AWS Marketplace, click Discover products, then search for elxr in Search AWS Marketplace products.

    ../../_images/aws-locate-elxr-dashboard.png

    In the results, click eLxr for AWS x86.

  2. Subscribe to the eLxr product.

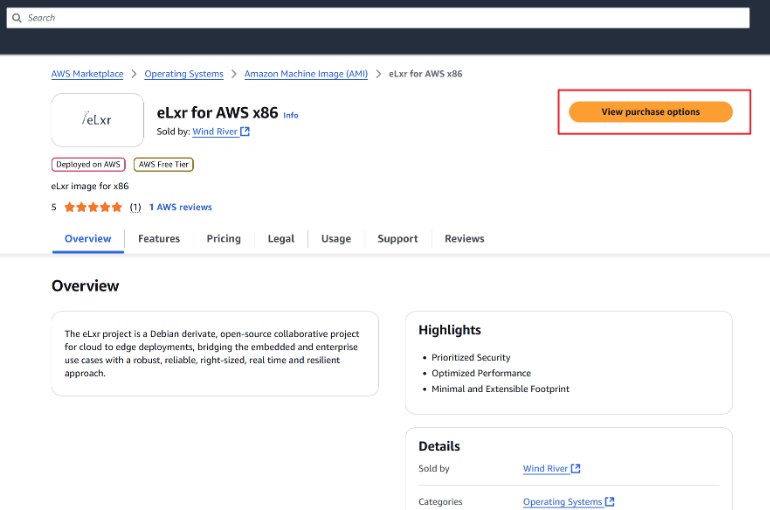

    Click View purchase options

    ../../_images/aws-subscribe-to-elxr-1.png

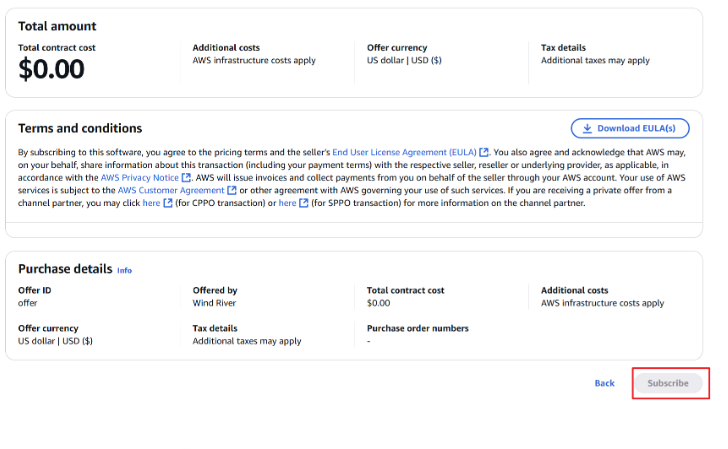

    Scroll down and click Subscribe.

    ../../_images/aws-subscribe-to-elxr-2.png

  3. Open the AWS Marketplace Launch eLxr for AWS x86 page.

    Option 1: From subscription in previous step

    Click Launch your software.

    ../../_images/aws-launch-1.png

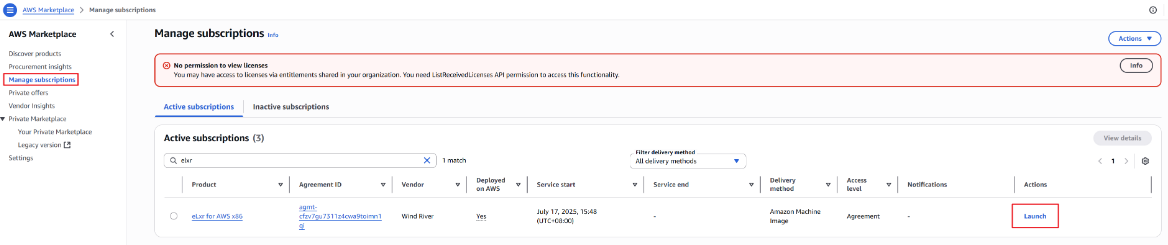

    Option 2: From the AWS Marketplace > Manage Subscriptions page.

    Locate your subscription and click Launch.

    ../../_images/aws-launch-2.png

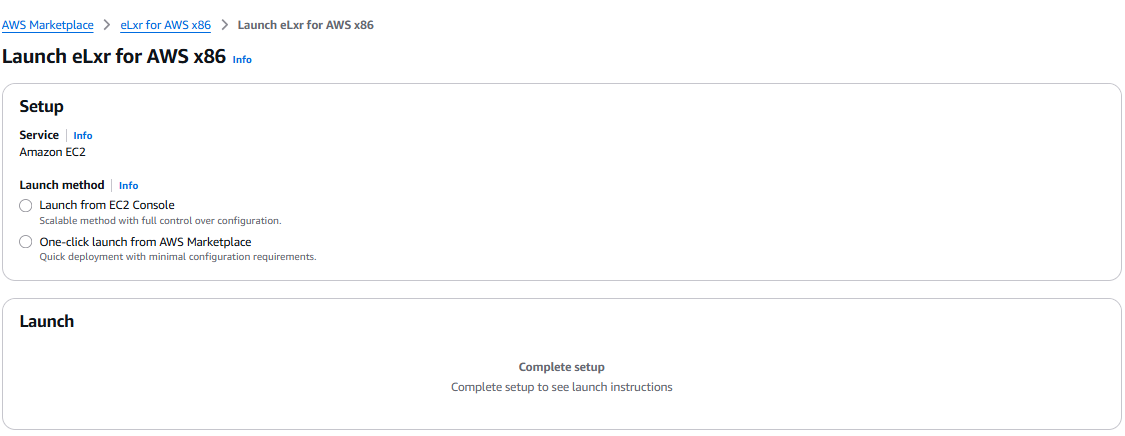

    Both launch options open the Launch eLxr for AWS x86 page where you can choose your image deployment method.

    ../../_images/aws-launch-options.png

  4. Launch your subscription using the following options:

    • Option 1: Launch from the EC2 Console (Recommended)

      For details, see AWS documentation Connect to your EC2 instance

      Select Launch from EC2 Console then click Launch from EC2.

      ../../_images/aws-ec2-settings-launch.png

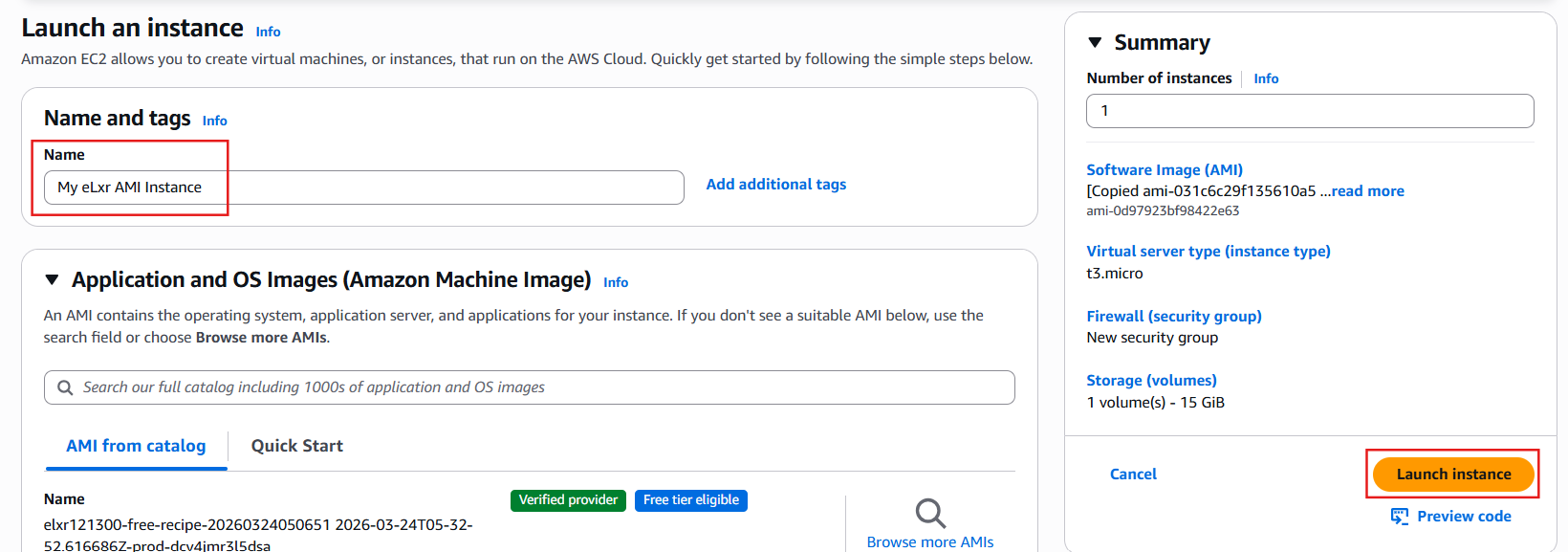

      Optionally enter an instance name, then click Launch.

      ../../_images/aws-ec2-settings-launch2.png

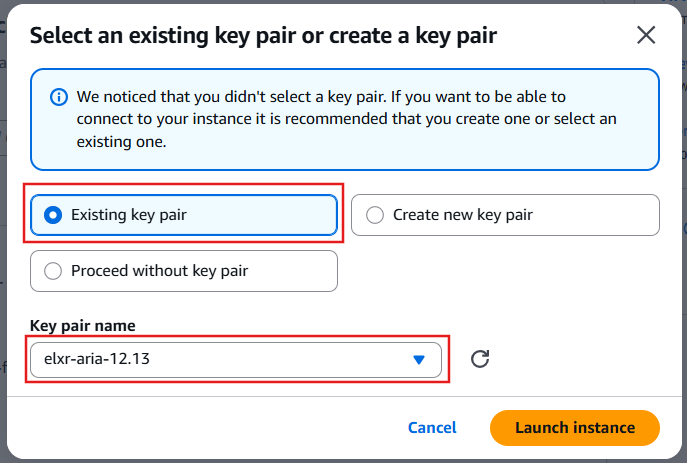

      On your first launch, you will be asked to select or create a key pair to continue. Select the option to create a key pair. Once complete, select the new key pair name, then click Launch Instance to continue.

      ../../_images/aws-ec2-settings-launch3.png

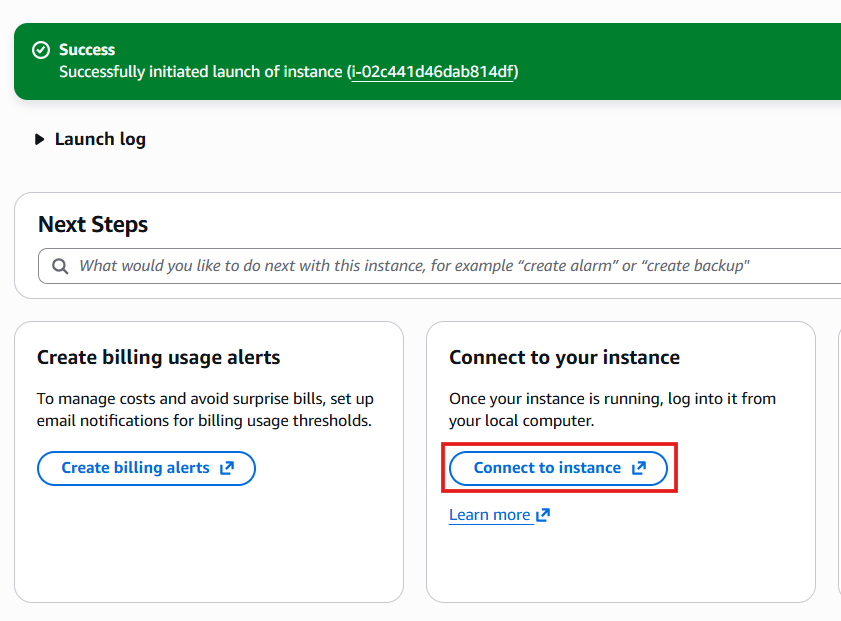

      A page opens to display the successful launch. Click Connect to instance to continue.

      ../../_images/aws-ec2-settings-launch4.png

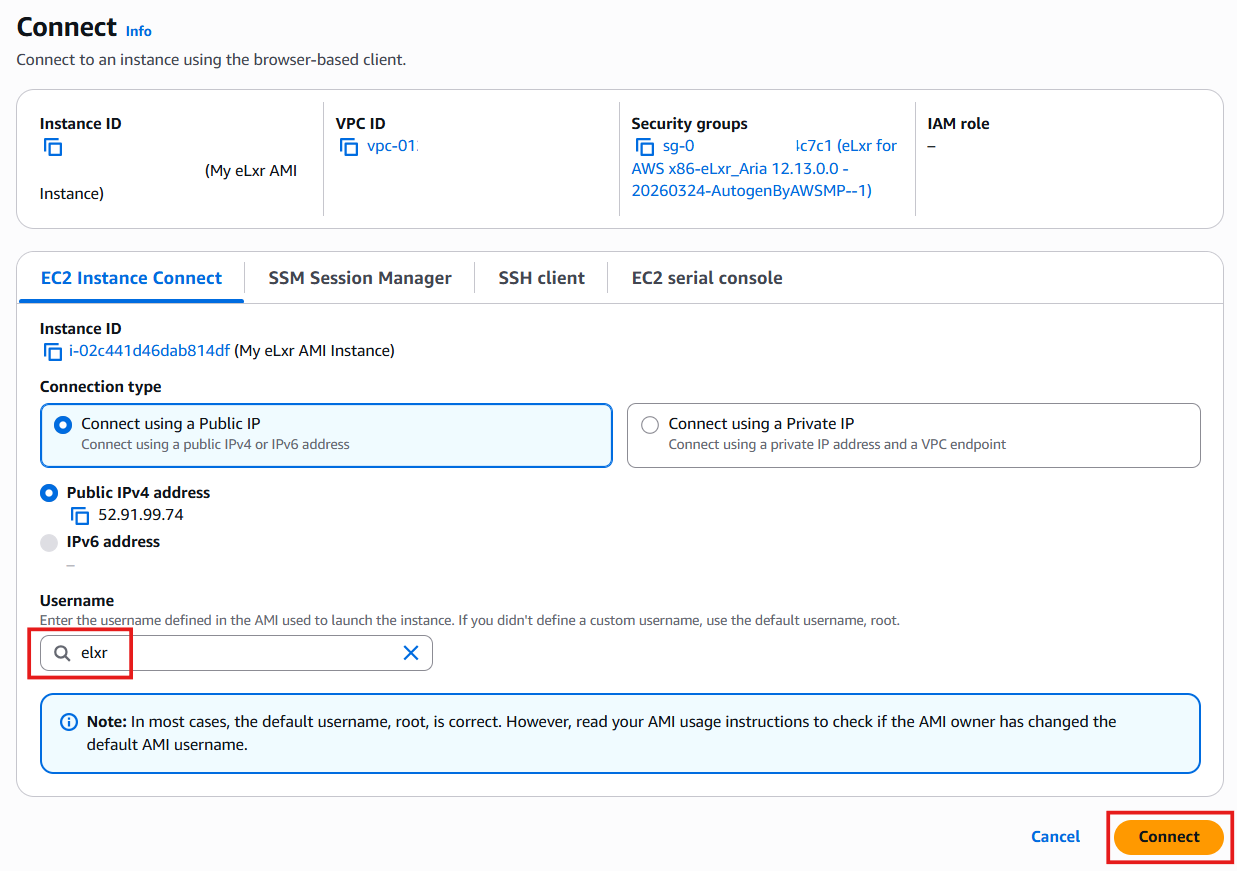

      In the Connect page, enter elxr for the username, then click Connect.

      ../../_images/aws-ec2-settings-launch5.png

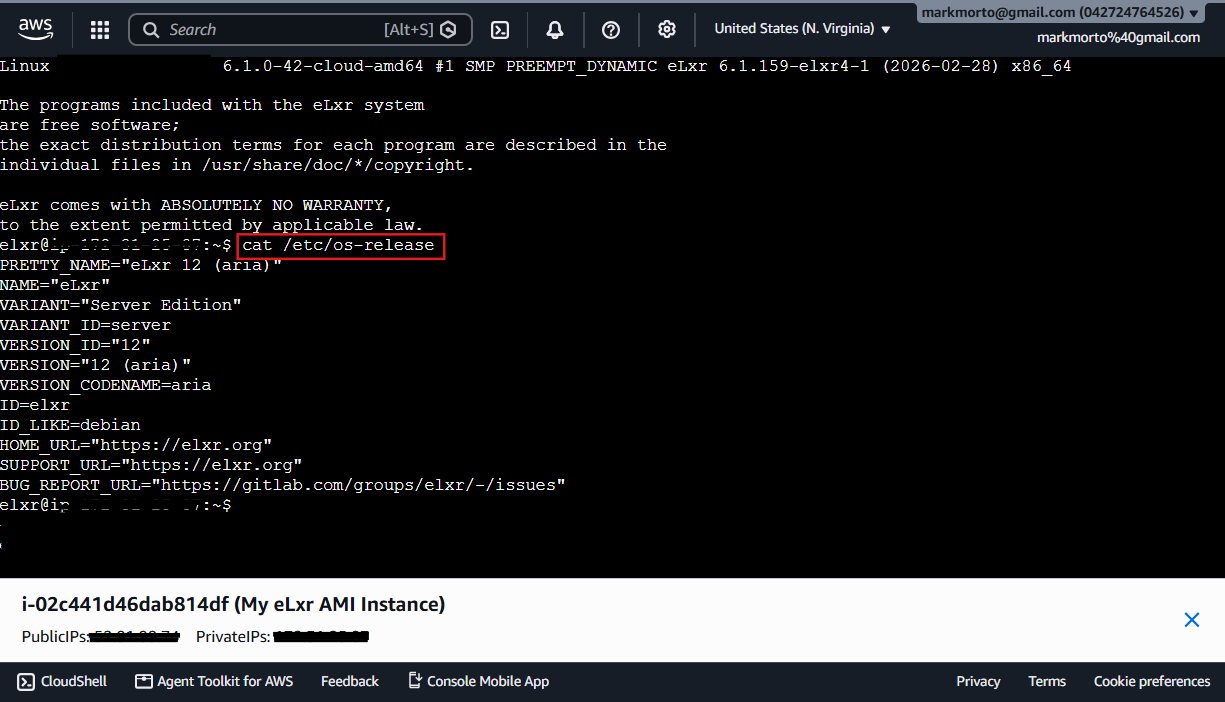

      The eLxr instance console displays to provide command-line access to your instance. Enter cat /etc/os-release and press Return to obtain additional information about the release.

      ../../_images/aws-ec2-settings-launch6.png

    • Option 2: One click launch from the AWS Marketplace

      Use this option to launch your instance directly in a browser. You must select a security group and create a key pair to continue.

      ../../_images/aws-launch-3.png

      Similar to the EC2 launch, the eLxr instance console will display to provide command-line access to your instance.

Note

After the initial launch, use the EC2 Manage Subscriptions page and console to perform additional actions, such as launching or connecting to your instance.
